Built to see and to stop.
Four reasons integrators are speccing Prism Series on commercial jobs.
8MP Ultra HD
Capture every detail with 8MP resolution and a 1/1.8" Sony STARVIS 2 sensor for crisp, professional-quality video, day or night.
VividNight™ Color
See more after dark with vibrant, true-to-life color even in low-light conditions, not the washed-out black-and-white of legacy night vision.
Proactive Deterrence
Stop incidents before they happen with Remote Video Monitoring* and AI Deterrence*, built into the Alarm.com for Business platform.
*separate add-ons
Two-Way Audio
Full-duplex audio with a built-in mic for real-time communication and live talk-down, right from the Alarm.com app.
*accessory cable required for external audio / digital I/O
Pick your form factor.
Two housings, four models. Same 8MP platform, same VividNight™ color, same Alarm.com integration. Choose the camera that fits the job and shop it direct.
8MP Varifocal Bullet
A classic outdoor bullet with a motorized varifocal lens to frame the exact field of view you need on perimeters, parking lots, and entries. Built-in mic and line-level audio I/O.
- 8MP Ultra HD · varifocal lens
- VividNight™ color night vision
- 40m built-in IR
- Two-way audio (built-in mic + line I/O)
- IP66 · IK10 · NEMA 4X · PoE

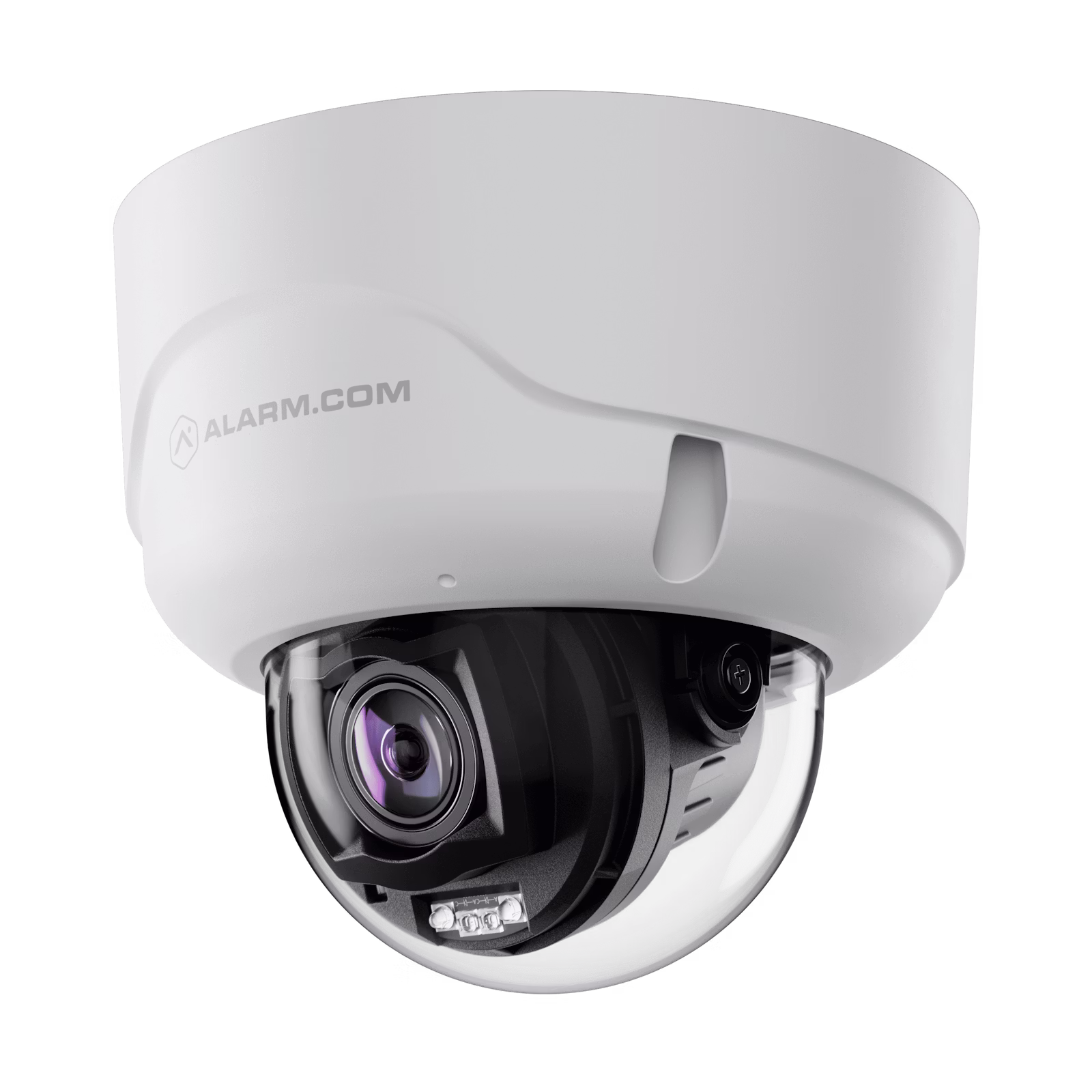

8MP & 5MP Vandal Domes
Vandal-resistant domes for ceilings, soffits, and exposed walls. Pick a motorized varifocal 8MP for flexible framing, or a fixed-lens 8MP or 5MP for a simpler, cost-effective install.
- Vandal-resistant dome housing
- VividNight™ color night vision
- 40m built-in IR
- Varifocal or fixed-lens options
- IP66 · IK10 · NEMA 4X · PoE
The numbers that matter.
Specs shown for the 8MP varifocal bullet (ADC-VC7398PA) and dome (ADC-VC8498PA). Fixed-lens (ADC-VC8498P) and 5MP (ADC-VC8295P) domes share the same platform with a fixed lens or 5MP sensor.
Camera & Lens
- Max. Resolution
- 3840 × 2160 (8MP)
- Image Sensor
- 1/1.8" Sony STARVIS 2 CMOS
- Field of View
- Horizontal 110.4° to 45.1° · Vertical 57.9° to 25.4°
- Range of Motion
- Pan 350° / Tilt 80° / Rotation 350°
- Min. Illumination
- 0.02 lux color · <0.005 lux B/W · 0 lux IR on
- Built-in IR
- 40m range
Power & Connectivity
- Power
- IEEE 802.3af PoE
- Consumption
- Max 12.4 W (IR on) / 9.6 W (IR off)
- Network
- 10/100 Mbps Ethernet (RJ-45)
- Audio
- Full-duplex, built-in mic + line-level I/O
Physical & Environmental
- Operating Temp
- -35 °C to 60 °C (-31 °F to 140 °F)
- Humidity
- Up to 98% RH (non-condensing)
- Protection
- IP66 · IK10 · NEMA 4X
- Dome Dimensions
- Ø 134 × 116 mm · 990 g
- Bullet Dimensions
- Ø 92 × 258.5 mm · 1.04 kg
- Compliance
- NDAA-approved hardware
