Luminys N5 Camera Series Overview

See everything.
Stop threats before they start.

AI-powered N5 cameras for full-color night, smart lighting, and active deterrence. NDAA compliant and IP67 rated, built for real-world installs.

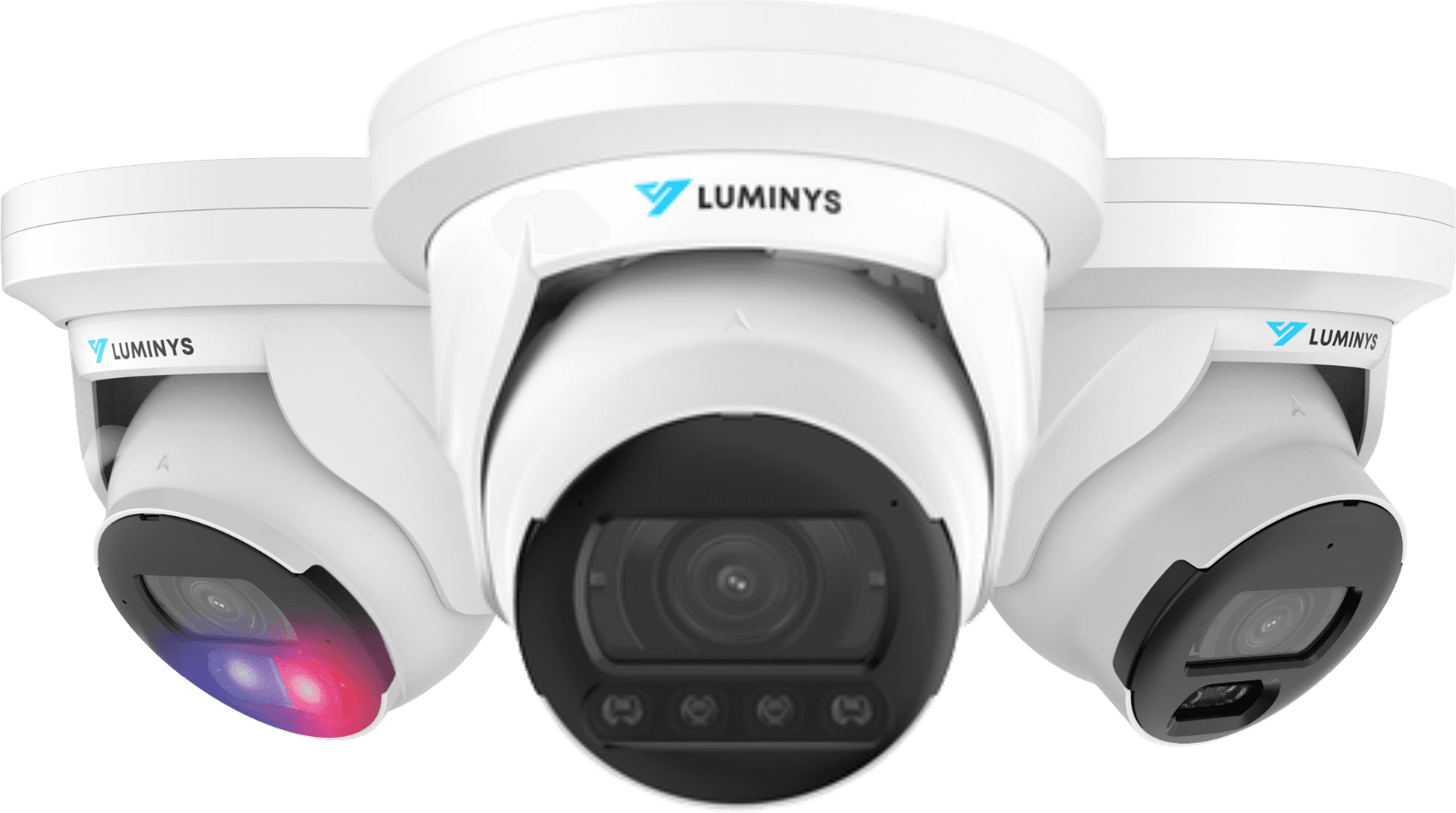

Luminys N5 series: LumiColor, LumiLuxSmart, and LumiDeterrent cameras
NDAA Compliant · IP67 All-Metal Housing · Up to 12MP · ONVIF Compatible
Three cameras · one mission

Pick the N5 for the job.

Every N5 variant is purpose-built — full-color darkness, smart lighting, or active deterrence. Choose the one that fits the install.

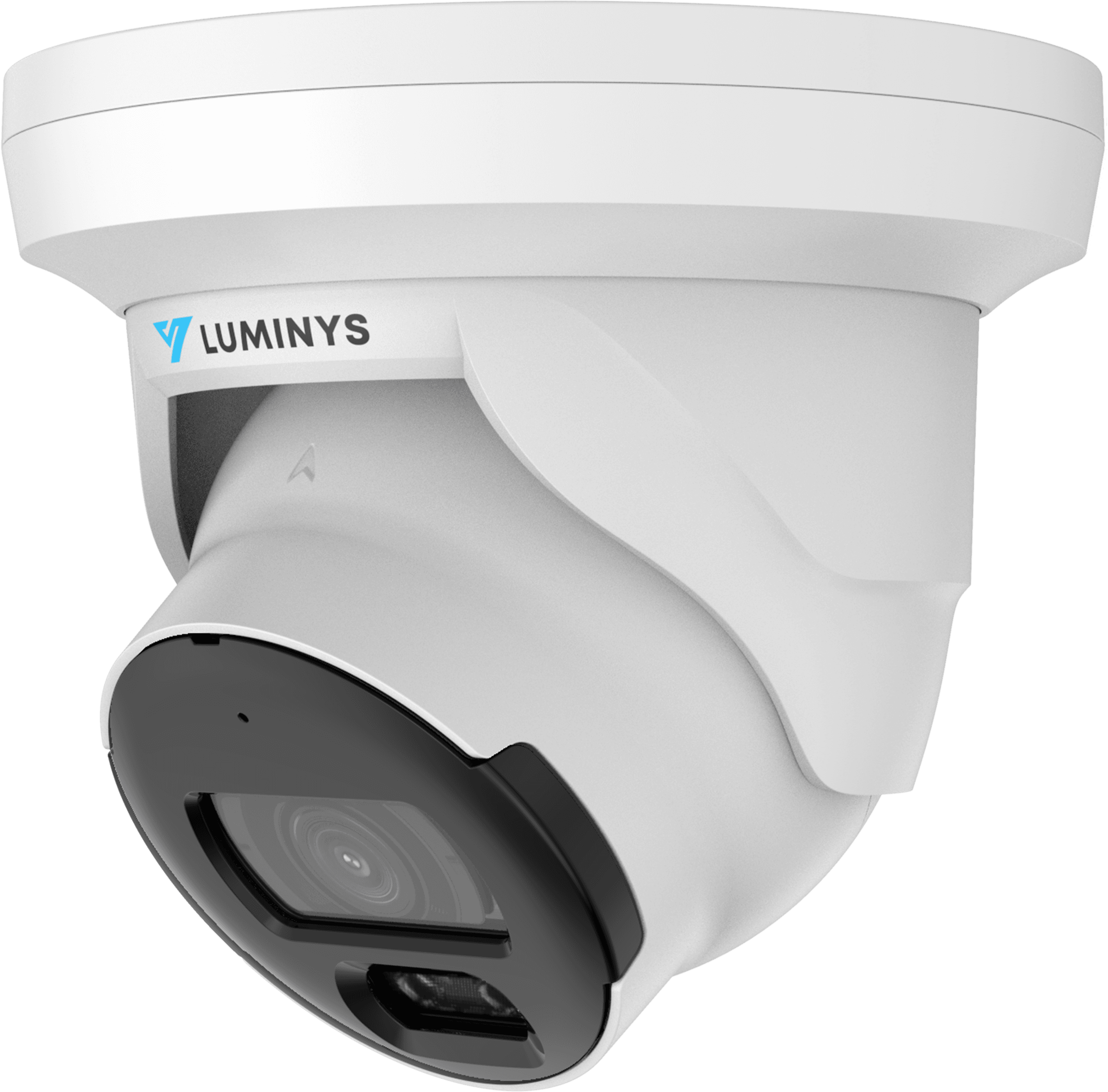

Luminys N5T-4CA2 LumiColor turret camera, left view
LumiColor · N5-C
Full color in complete darkness.

Full-color imaging at 0 lux with wide-aperture optics and white-light LEDs for night-time identification and evidence.

Browse products →

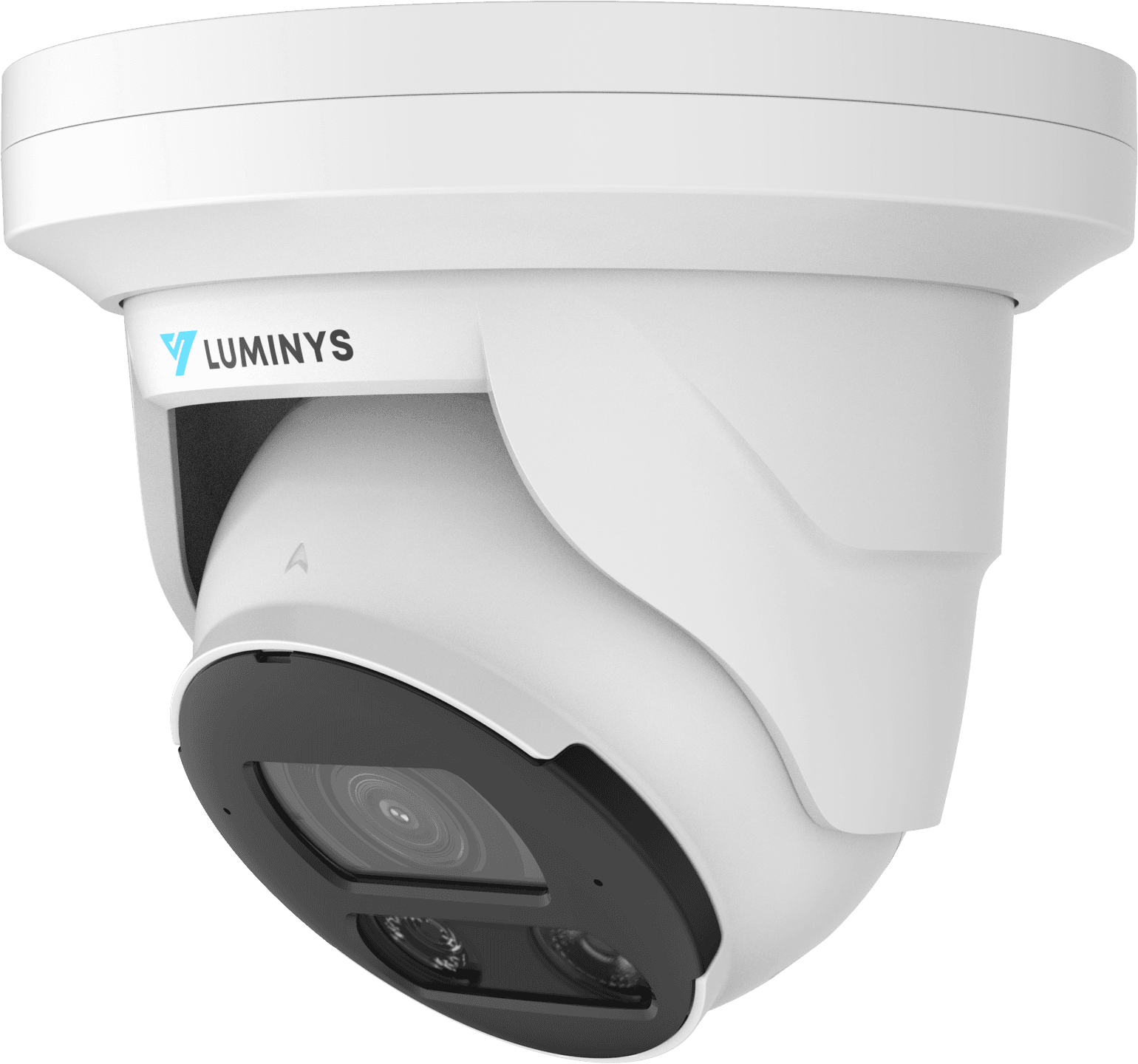

Luminys N5T-4DA2 LumiDeterrent turret camera with active deterrence LEDs

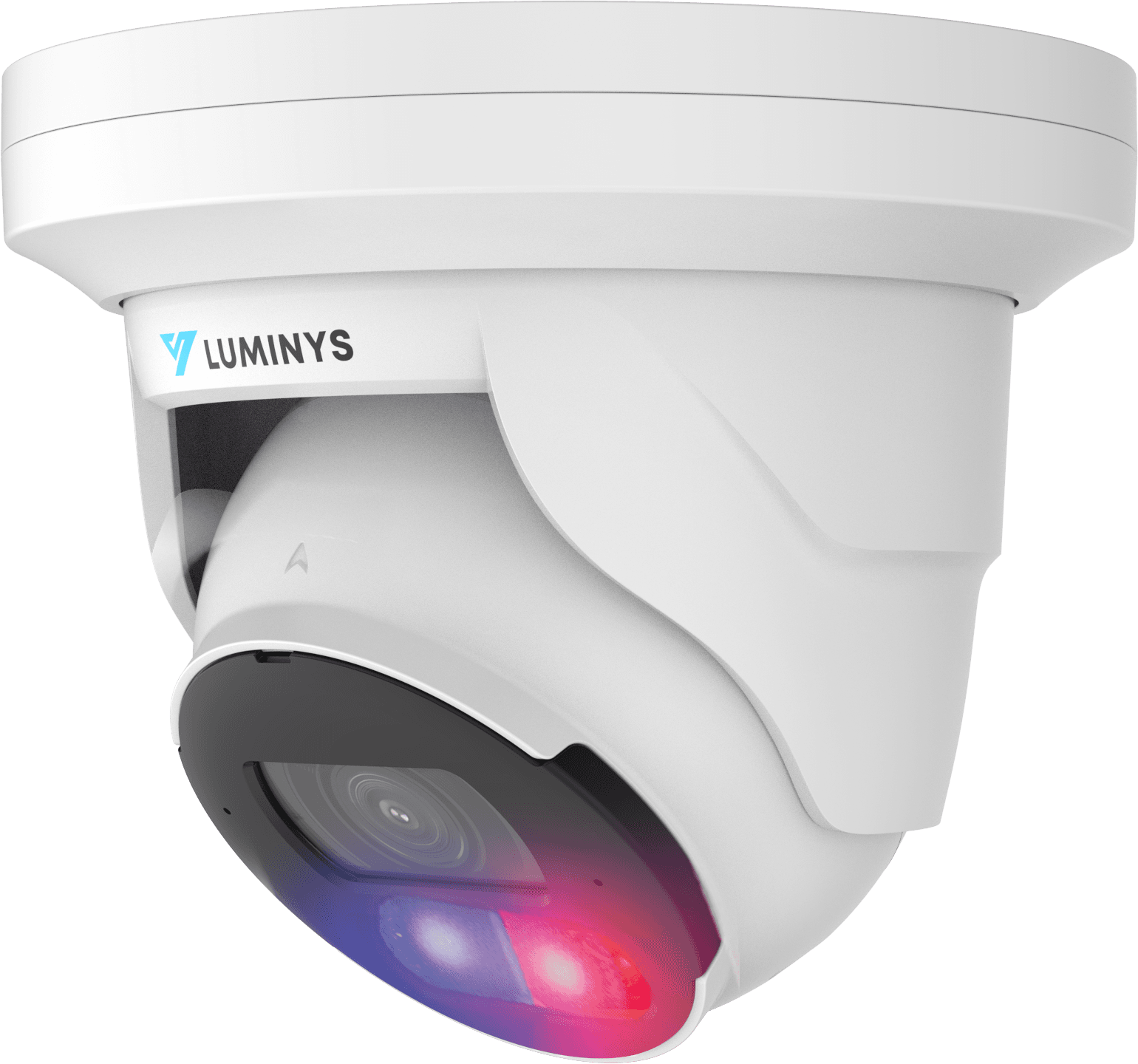

LumiDeterrent · N5-D
Don't just record threats. Stop them.

When the AI spots a threat: strobes, siren, and warnings. Stop incidents before they escalate.

Browse products →

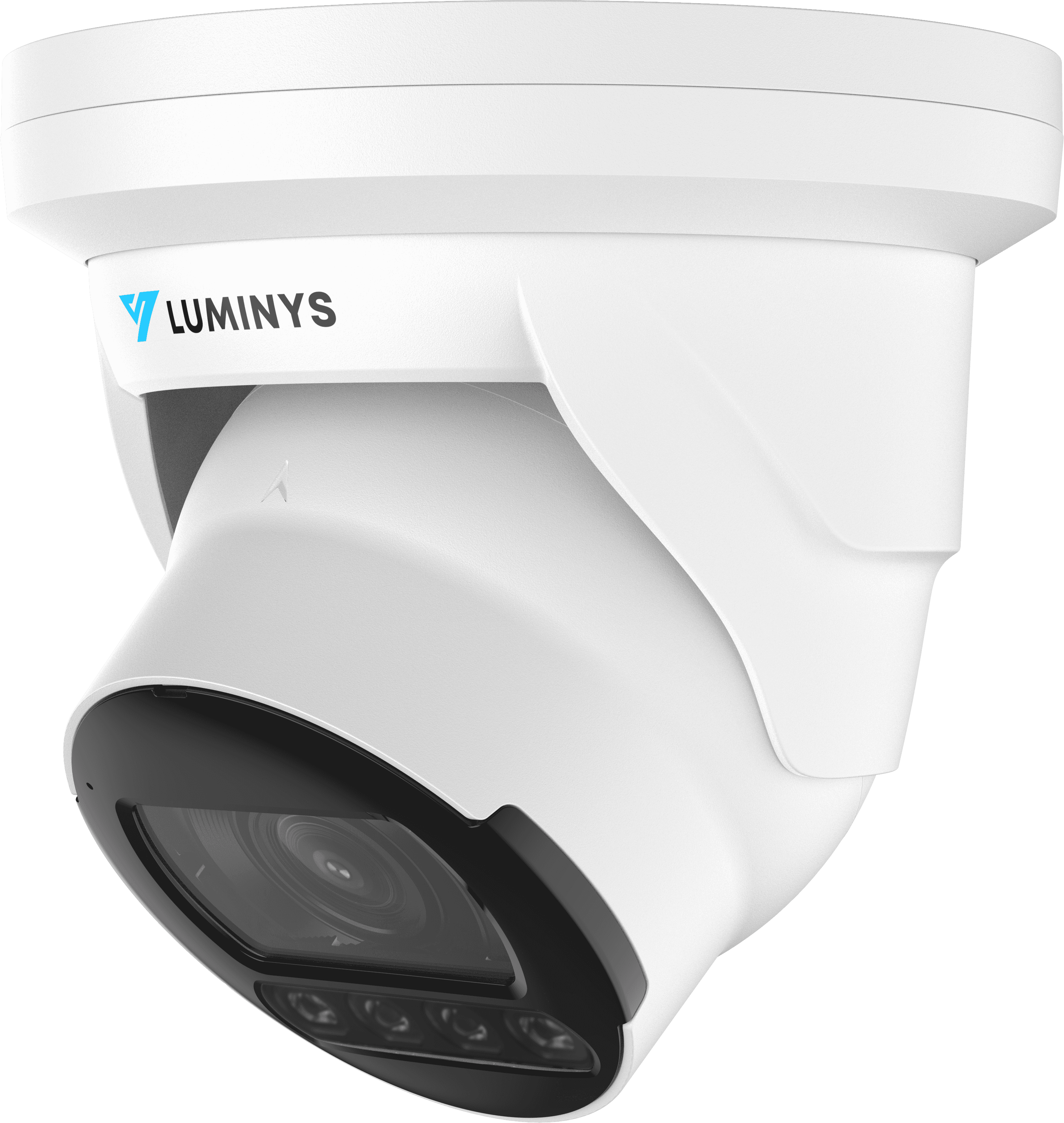

Luminys N5T-4LAV LumiLuxSmart turret camera, left view
LumiLuxSmart · N5-L
Smart light. Zero waste. Perfect clarity.

IR by default for less spill; white light on motion for color only when it counts.

Browse products →
Engineered once · shared across the line

Every N5.
Robust features.

Every variant ships with a powerful shared foundation — the analytics, the weatherproofing, the compliance, and the dual-power flexibility integrators expect.

iMD Intelligent Motion Detection

Filters humans and vehicles for fewer false alarms.

LumiSearch

Search by reference image with intelligent target tracking.

IP67 Weatherproof

Metal enclosures, rated for every climate on the truck.

Operating Range

-40°F to 140°F. Zero compromise in the field.

Three Form Factors

Bullet (N5B), Dome (N5D), Turret (N5T).

Resolutions

4MP (2K), 8MP (4K), and 12MP options.

Lens Options

2.8mm fixed or 2.7–13.5mm motorized vari-focal.

NDAA Compliant

Section 889 compliant, end-to-end.

ONVIF Profiles G, S, T

VMS-agnostic integration.

PoE + 12VDC

Dual power support on every model.

LumiColor + LumiLuxSmart · extra intelligence

Analytics on top.

AI Video Analytics

Line crossing, intrusion, loitering, parking detection.

Face Detection

Real-time face recognition at the edge.

People Counting & Queueing

Operational intelligence built in.

Heat Mapping

Understand traffic patterns in one glance.

LumiPower PoE

Up to 3,000 feet without repeaters.

LumiDeterrent ships with VCA (standard) in place of VCA+ and does not include the above analytics.

Side-by-side · pick your N5

Every variant, clearly compared.

All three share the N5 foundation. The differences are in how they see — and how they respond.

Feature
N5-C
LumiColor
Full-color night
N5-D
LumiDeterrent
Active response
N5-L
LumiLuxSmart
Smart illumination
Night vision typeFull-color (white light)IR + white-light LEDsIR + white-light LEDs
Primary light sourceIntegrated white LEDsIR by default; switches to white light on motionIR by default; switches to white light on motion
AI-powered deterrence✓ Lights + siren
Color video at night✓ Always-onOn motion or always-onOn motion or always-on
Light pollutionModerateLow–moderateLow–moderate
Spec sheet · N5 series

Built tough. Spec'd right.

The numbers, the listings, the options. Everything an integrator needs before pulling cable.

Resolutions

4MP (2560×1440), 8MP (3840×2160), 12MP (4000×3000).

Lenses

2.8mm fixed (~110° FOV) or 2.7–13.5mm motorized vari-focal with remote zoom/focus.

Form Factors

Bullet (N5B), Dome (N5D), Turret (N5T) — same intelligence across every shape.

Weatherproofing

IP67 rated, all-metal enclosures.

Operating Range

-40°F to 140°F (-40°C to 60°C). ¹

Power

PoE (802.3af/at) and 12VDC. Whatever the panel supports.

LumiPower Reach

Up to 3,000 feet of PoE. No repeaters, no re-pulls.

Compliance

NDAA Section 889 and ONVIF Profiles G, S, and T.

AI Analytics

VCA+, iMD, LumiSearch, Face Detection, People Counting, Heat Mapping, Queue Management.

¹ Varifocal models: -22°F to 140°F (-30°C to 60°C).
